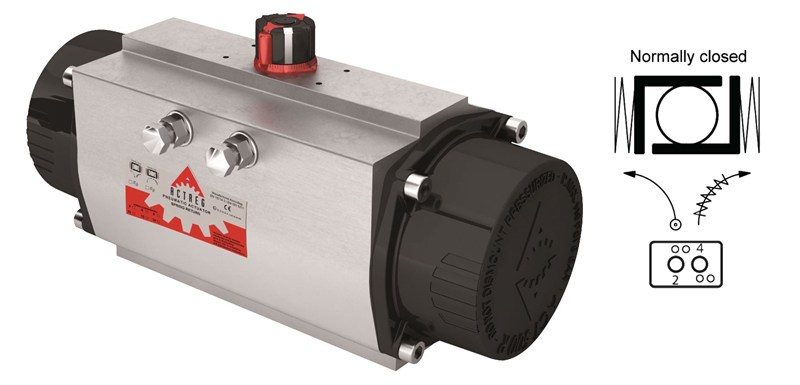

Actuator - Anodized aluminum - NBR - F14 - #36 - 14 springs - PN8 - Single acting - 100°C
Reference :
ASR1750/14/0014/36
Brand reference :
ASR17501414CN
| Adapter plate | |
| Body material | |
| Fluid working Temp | |
| Operated | |
| Operating torque, pressure opening at 6 bar | |
| Operating torque, spring closure | |
| Output star | |
| PN | |
| Sealing |
ACTREG quarter-turn pneumatic actuator TYPE ASR 1750
- Single acting
- 14 springs
- Opening torque by pressure at 6 bar : 954 / 697 Nm
- Closing torque by spring : 541 / 843 Nm
- Installation drawing F14
- Output star 36mm
- Actuating angle 90°
- Double stop adjustable +/- 5°.
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature range -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22
- Direction of rotation by springs: clockwise (for valve normally closed at rest)
- Single acting
- 14 springs
- Opening torque by pressure at 6 bar : 954 / 697 Nm
- Closing torque by spring : 541 / 843 Nm
- Installation drawing F14
- Output star 36mm
- Actuating angle 90°
- Double stop adjustable +/- 5°.
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature range -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22
- Direction of rotation by springs: clockwise (for valve normally closed at rest)
| Adapter plate | |
| Body material | |
| Country of origin |
|
| Customs duty number |
|
| Eclass |
|
| Fluid working Temp | |
| Gross weight (kg) |
|
| Operated | |
| Operating torque, pressure opening at 6 bar | |
| Operating torque, spring closure | |
| Output star | |
| PN | |
| Sealing | |
| UNSPSC Code |
|
