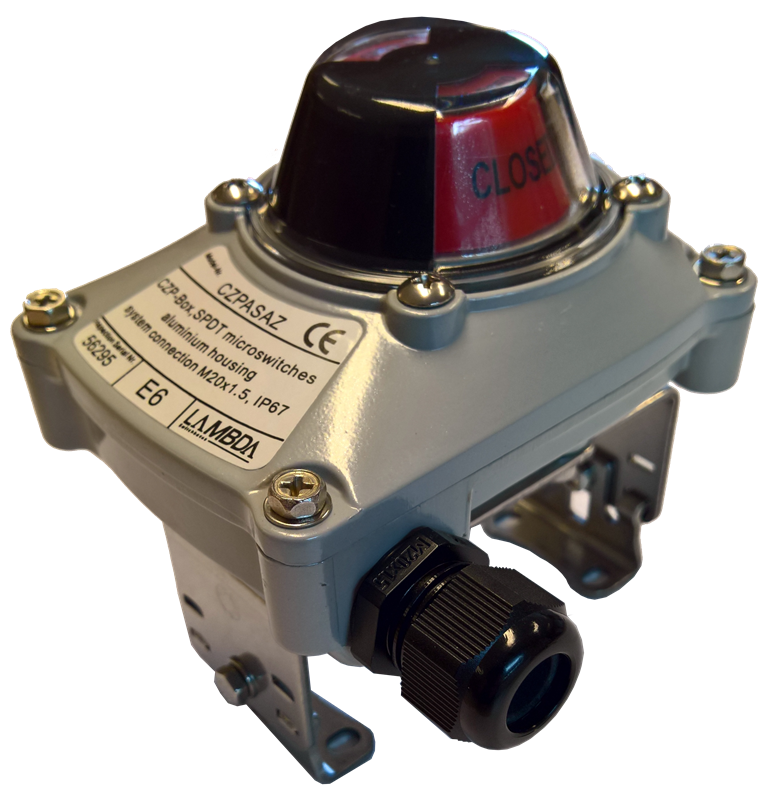

LAMBDA CZPASAZ limit switch - Aluminum housing - 2x SPDT - IP67 + bracket
Reference :
GEXX.001.01
Brand reference :
| Specifications | |
| Body material |
LAMBDA CZPASAZ limit switch box
- Aluminium housing with yellow/red 3D indicator
- 2 electromechanical contacts Honeywell SPDT ZM50G10B01 UL CSA
- Max. switching current 5A 125 VAC / 250VAC - 5 AR 30VDC
- Protection class IP67
- Electrical connection: 2 x M20x1.52 inputs M20x1.5
- Supplied with cable gland M20x1.5 and plug M20x1.5
- Axis output length 25mm
- 8-pole terminal block
- With stainless steel bracket for sizes 1 to 3 according to VDI/VDE 3845 (length 80mm & 130mm, height 20mm & 30mm)
- Aluminium housing with yellow/red 3D indicator
- 2 electromechanical contacts Honeywell SPDT ZM50G10B01 UL CSA
- Max. switching current 5A 125 VAC / 250VAC - 5 AR 30VDC
- Protection class IP67
- Electrical connection: 2 x M20x1.52 inputs M20x1.5
- Supplied with cable gland M20x1.5 and plug M20x1.5
- Axis output length 25mm
- 8-pole terminal block
- With stainless steel bracket for sizes 1 to 3 according to VDI/VDE 3845 (length 80mm & 130mm, height 20mm & 30mm)
| Specifications | |
| Body material | |
| Intrastat code |
|
| Gross weight |
|
| Country |
|
| ECLASS code |
|
| UNSPSC code |
|
