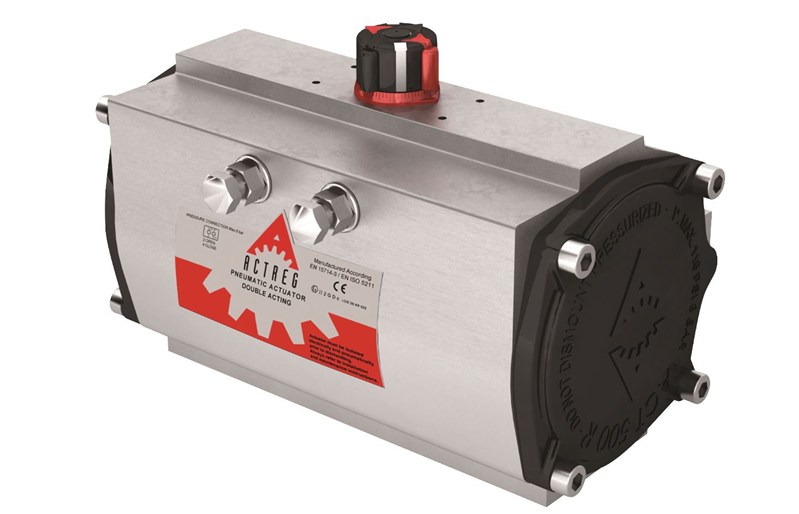

Actuator - Anodized aluminum - NBR - F03-F05 - #09 - PN8 - Double acting - 100°C
Reference :
ADA0020/0305/09
Brand reference :
ADA0020F0305
| Body material | |
| Sealing | |
| Nominal pressure | |
| Fluid operating temperature |
ACTREG quarter-turn pneumatic actuator TYPE ADA 20
- Double acting
- Operating torque opening pressure at 6 bar : 19,5 Nm
- Installation drawing F03/F05
- Output star 09 mm
- Operating angle 90°.
- Double stop adjustable +/- 5°
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22
- Double acting
- Operating torque opening pressure at 6 bar : 19,5 Nm
- Installation drawing F03/F05
- Output star 09 mm
- Operating angle 90°.
- Double stop adjustable +/- 5°
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22
| Body material | |
| Sealing | |
| Nominal pressure | |
| Fluid operating temperature | |
| Control | |
| Spring-return closing torque | |
| Opening torque at 6 bar | |
| Installation diagram | |
| Output star | |
| Intrastat code |
|
| Gross weight |
|
| Country |
|
| ECLASS code |
|
| UNSPSC code |
|
Associated products
See all products
Stock : 38
€74.74
