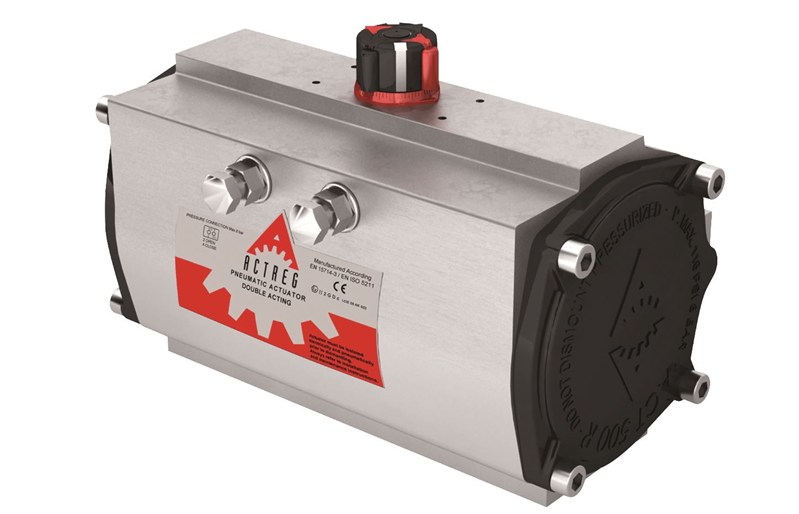

Actuator - Anodized aluminum - NBR - F03 - #09 - PN8 - Double acting - 100°C
Reference :
ADA0010/0003/09
Brand reference :
ADA0010
| Adapter plate | |
| Body material | |
| Fluid working Temp | |
| Operated | |
| Operating torque, pressure opening at 6 bar | |
| Operating torque, spring closure | |
| Output star | |
| PN | |
| Sealing |
ACTREG quarter-turn pneumatic actuator TYPE ADA 10
- Double acting
- Opening pressure torque at 6 bar : 12 Nm
- Installation drawing F03
- Output star 09mm
- Operating angle 90°.
- Double adjustable stop +/- 5°
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature range -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22+H839
- Double acting
- Opening pressure torque at 6 bar : 12 Nm
- Installation drawing F03
- Output star 09mm
- Operating angle 90°.
- Double adjustable stop +/- 5°
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature range -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22+H839
| Adapter plate | |
| Body material | |
| Country of origin |
|
| Customs duty number |
|
| Eclass |
|
| Fluid working Temp | |
| Gross weight (kg) |
|
| Operated | |
| Operating torque, pressure opening at 6 bar | |
| Operating torque, spring closure | |
| Output star | |
| PN | |
| Sealing | |
| UNSPSC Code |
|
Associated products
See all products
Stock : 66
€74.74
