Inductive sensor P&F - 10 to 30 VDC - PNP - 2x NO
Reference :
LIXX.002.001
Brand reference :
097638
| Body material | |
| Specifications |
P+F inductive sensor Type NBN3-F31K-E8-K
- Direct mounting on standardised drives
- Switching function: two, normally open
- Output type: PNP (3-wire)
- Nominal range sn: 3 mm
- Operating voltage 10 to 30 V DC
- Operating current 0 to 100 mA
- Operating voltage display Green LED
- Indication of switching status Yellow LED
- Visualisation of solenoid valve status Yellow LED
- Ambient temperature from -25°C to +70°C
- Connection: spring terminals
- Housing material PBT
- Protection class IP67
- Direct mounting on standardised drives
- Switching function: two, normally open
- Output type: PNP (3-wire)
- Nominal range sn: 3 mm
- Operating voltage 10 to 30 V DC
- Operating current 0 to 100 mA
- Operating voltage display Green LED
- Indication of switching status Yellow LED
- Visualisation of solenoid valve status Yellow LED
- Ambient temperature from -25°C to +70°C
- Connection: spring terminals
- Housing material PBT
- Protection class IP67
| Body material | |
| Country of origin |
|
| Customs duty number |
|
| Eclass |
|
| Gross weight (kg) |
|
| Specifications | |
| UNSPSC Code |
|
Associated products
See all products
Stock : 43
LIAX.003.001

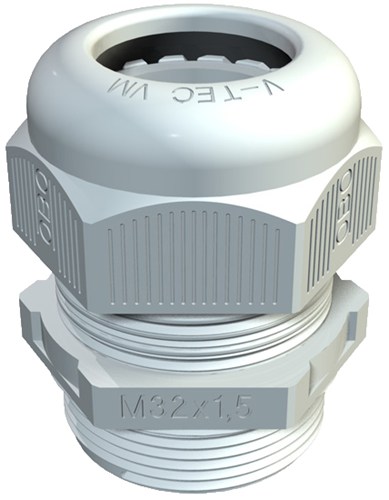

Cable gland for dual sensor
