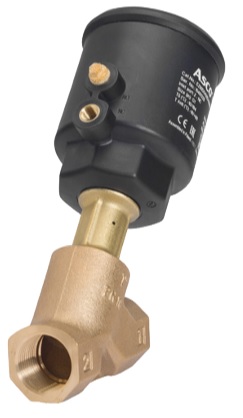

Globe valve - Angle Bronze body - PTFE - G1"1/4 FF - PN16 - 2/2 - 184°C - 4,5 to 10 bar
Reference :
E290D0550DA0000
Brand reference :
| Specifications | |
| Body material | |
| Sealing | |
| Connection diameter | |
| Nominal pressure | |
| Fluid operating temperature |
Angle-seat valve Asco:
- Bronze body
- PTFE valve plug sealing
- PTFE body gasket
- Threaded connection
- Female–Female 1"1/4
- PN16
- Flow coefficient (Kv): 420 l/min
- Allowable differential pressure: min 0 bar / max 6 bar
- Operation: 2-way
- Normally closed
- Pneumatically actuated
- Pilot pressure: 4.5 to 10 bar
- Actuator head: 63 mm
- Ambient temperature range: (-)10°C to (+)60°C
- Fluid service temperature range: (-)10°C to (+)184°C
- With visual position indicator
- Water hammer resistant
- Former reference: E290A016
- Bronze body
- PTFE valve plug sealing
- PTFE body gasket
- Threaded connection
- Female–Female 1"1/4
- PN16
- Flow coefficient (Kv): 420 l/min
- Allowable differential pressure: min 0 bar / max 6 bar
- Operation: 2-way
- Normally closed
- Pneumatically actuated
- Pilot pressure: 4.5 to 10 bar
- Actuator head: 63 mm
- Ambient temperature range: (-)10°C to (+)60°C
- Fluid service temperature range: (-)10°C to (+)184°C
- With visual position indicator
- Water hammer resistant
- Former reference: E290A016
