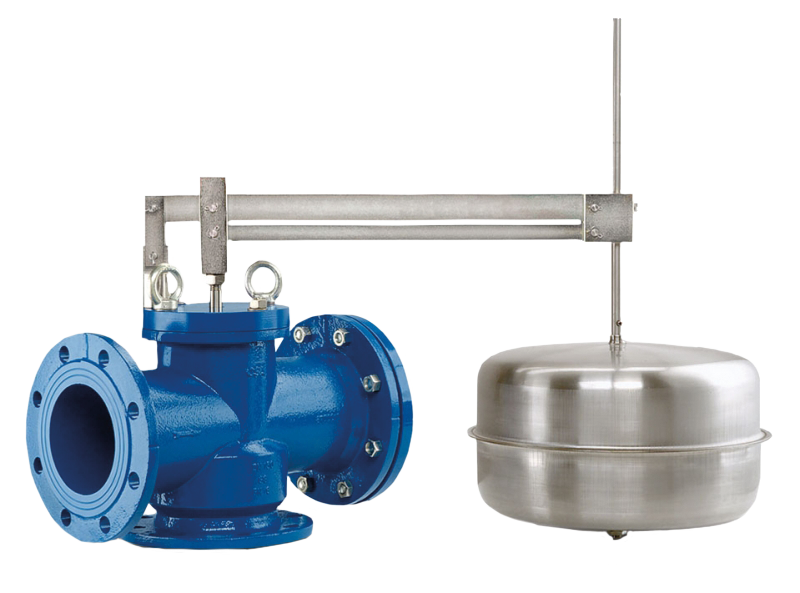

Float valve ATHENA model - DN80 - PN16
Reference :
FLFM.001.080
Brand reference :
P070001080
| Body material | |
| Diameter of connection | |
| Fluid working Temp | |
| GN | |
| PN | |
| Sealing | |
| Specifications | |
| Type of connection |
Balanced float valve with single seat model ATHENA
- DN 80
- PN 16
- Flanged connection EN 1092-2 GN 16
- Body with right angle or in-line passage
- Body in ductile iron GJS 500-7 epoxy coated
- Steel cover
- Seat in stainless steel AISI 304
- Seat gasket in NBR
- Float in stainless steel AISI 304
- Maximum operating pressure 16 bar
- Maximum temperature +70°C
- Flow coefficient Kv: at an angle 68.4 m³/h
- Flow coefficient Kv: straight 59.4 m³/h
- Float arm adjustable at 0°, 45° and 90°C
- WRAS approval, suitable for use with drinking water
- DN 80
- PN 16
- Flanged connection EN 1092-2 GN 16
- Body with right angle or in-line passage
- Body in ductile iron GJS 500-7 epoxy coated
- Steel cover
- Seat in stainless steel AISI 304
- Seat gasket in NBR
- Float in stainless steel AISI 304
- Maximum operating pressure 16 bar
- Maximum temperature +70°C
- Flow coefficient Kv: at an angle 68.4 m³/h
- Flow coefficient Kv: straight 59.4 m³/h
- Float arm adjustable at 0°, 45° and 90°C
- WRAS approval, suitable for use with drinking water
| Body material | |
| Compatibility - fluids |
|
| Country of origin |
|
| Customs duty number |
|
| Diameter of connection | |
| Eclass |
|
| Fluid working Temp | |
| GN | |
| Gross weight (kg) |
|
| PN | |
| Sealing | |
| Specifications | |
| Type of connection | |
| UNSPSC Code |
|
