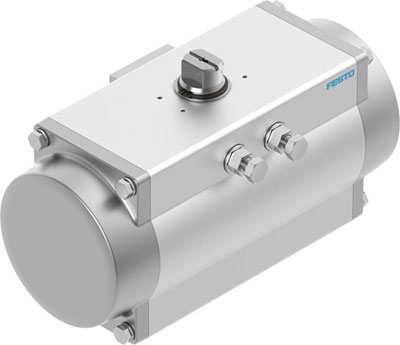

FESTO Actuator - Anodized aluminum - NBR - Size 480 - F10-F12 - Double acting - 100°C

Reference : DFPD-480-RP-90-RD-F1012
Brand reference : 8048127
FESTO Actuator - Anodized aluminum - NBR - Size 480 - F10-F12 - Double acting - 100°C
Adapter plate
Body material
Operated
Operating torque, pressure opening at 6 bar
Operating torque, spring closure
Output star
Sealing
FESTO rack and pinion pneumatic actuators Series DFPD
- Size: 480
- Rotation angle: 90°, adjustable -5° to +5° and +80° to +95
- Double acting
- Actuating torque per pressure at 6 bar: 474 Nm
- Direction of rotation: CW clockwise
- Piston material: Die-cast aluminium
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Valve interface to ISO 5211: F10-F12
- Drive via 45° square 27mm x 27mm
- Temperature range: Standard: -20 °C to +80 °C
- Operating pressure from 2 to 8 bar
- ATEX II 2 GD, SIL2
Adapter plate
Body material
Country of origin
  • DE
Customs duty number
  • 8412-3900
Eclass
  • 27290000
Gross weight (kg)
  • 16,41
Operated
Operating torque, pressure opening at 6 bar
Operating torque, spring closure
Output star
Sealing
UNSPSC Code
  • 27131700
