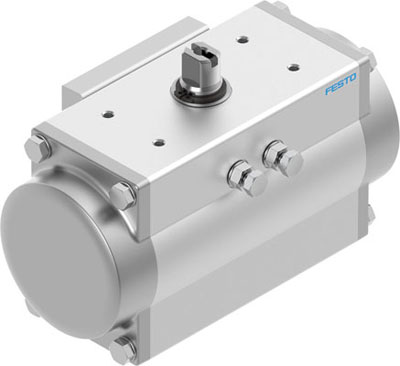

FESTO Actuator - Anodized aluminum - NBR - Size 40 - F04 - Single acting - 100°C - NC

Reference : DFPD-40-RP-90-RS60-F04
Brand reference : 8047636
FESTO Actuator - Anodized aluminum - NBR - Size 40 - F04 - Single acting - 100°C - NC
Body material
Sealing
FESTO Pneumatische tandheugelaandrijvingen serie DFPD

- Maat: 40

- Draaihoek: 90°, instelbaar -5° tot +5° en +80° tot +95°

- Enkelwerkend

- Moment bij sluiten bij druk van 6 bar: 28 / 14,5 Nm

- Moment bij openen door veer: 27,2 / 13,8 Nm

- Draairichting: CCW Veer in gesloten positie / klokwijzerszin

- Materiaal zuiger: gegoten aluminium

- Persluchttoevoeraansluiting G1/8" of volgens NAMUR VDI/VDE 3845

- Klepinterface volgens ISO 5211: F04

- 45° vierkante aandrijving van 11 mm x 11 mm
- Temperatuurbereik: Standaard: -20°C tot +80°C

- Werkdruk van 2 tot 8 bar

- ATEX II 2GD, SIL2
Body material
Sealing
Control
Spring-return closing torque
Opening torque at 6 bar
Installation diagram
Output star
Intrastat code
  • 8412-3900
Gross weight
  • 2.3518
Country
  • DE
ECLASS code
  • 27290000
UNSPSC code
  • 27131700
