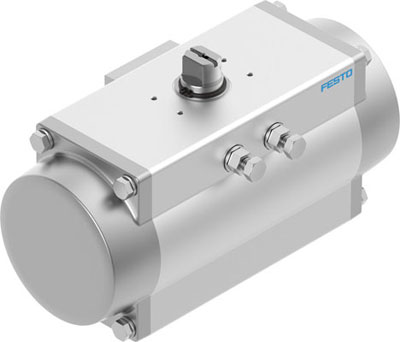

FESTO Actuator - Anodized aluminum - NBR - Size 300 - F07-F10 - Single acting - 100°C - NC
Reference :
DFPD-300-RP-90-RS60-F0710
Brand reference :
8048140
| Adapter plate | |
| Body material | |
| Operated | |
| Operating torque, pressure opening at 6 bar | |
| Operating torque, spring closure | |
| Output star | |
| Sealing |
FESTO rack and pinion pneumatic actuators Series DFPD
- Size: 300
- Rotation angle: 90°, adjustable -5° to +5° and +80° to +95
- Single acting
- Opening torque by pressure at 6 bar: 221 / 115,3 Nm
- Closing torque by spring: 214.1 / 108.4 Nm
- Direction of rotation: CW Spring closed / clockwise
- Piston material: Die-cast aluminium
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Valve interface to ISO 5211: F07-F10
- Drive via 45° square 22mm x 22mm
- Temperature range: Standard: -20 °C to +80 °C
- Operating pressure from 2 to 8 bar
- ATEX II 2 GD, SIL2
- Size: 300
- Rotation angle: 90°, adjustable -5° to +5° and +80° to +95
- Single acting
- Opening torque by pressure at 6 bar: 221 / 115,3 Nm
- Closing torque by spring: 214.1 / 108.4 Nm
- Direction of rotation: CW Spring closed / clockwise
- Piston material: Die-cast aluminium
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Valve interface to ISO 5211: F07-F10
- Drive via 45° square 22mm x 22mm
- Temperature range: Standard: -20 °C to +80 °C
- Operating pressure from 2 to 8 bar
- ATEX II 2 GD, SIL2
| Adapter plate | |
| Body material | |
| Country of origin |
|
| Customs duty number |
|
| Eclass |
|
| Gross weight (kg) |
|
| Operated | |
| Operating torque, pressure opening at 6 bar | |
| Operating torque, spring closure | |
| Output star | |
| Sealing | |
| UNSPSC Code |
|
