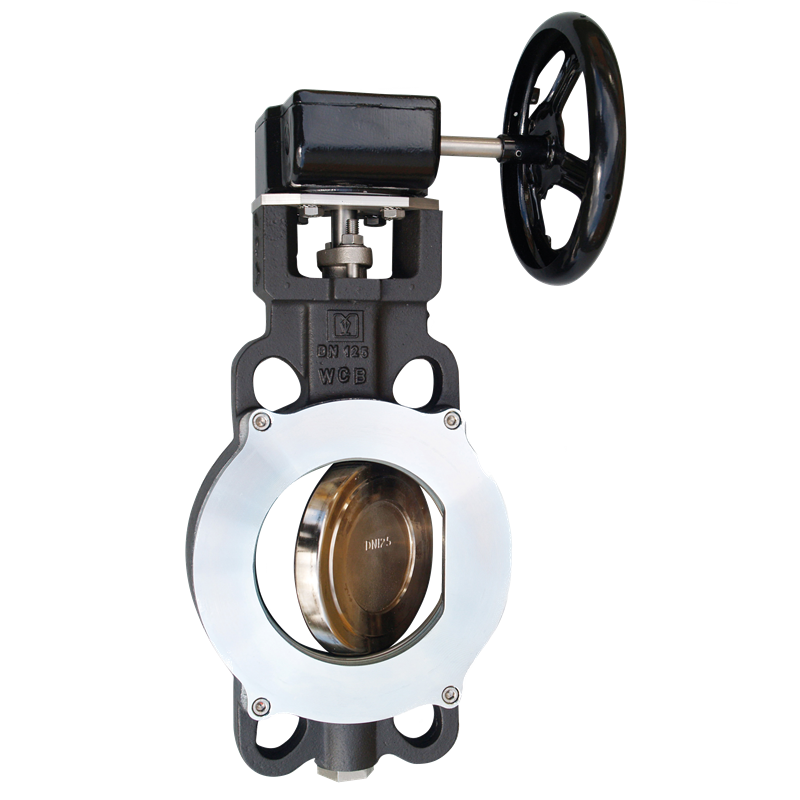

Double offset butterfly valve - Carb Steel body - R-PTFE - Stain.Steel butterfly - WAFER DN200/PN40
Reference :
BUWM.012.200
Brand reference :
2E-5590B 200 GEARBOX
| Body material | |
| Sealing | |
| Connection diameter | |
| Nominal geometry | |
| Nominal pressure | |
| Fluid operating temperature |
High-performance double-offset carbon steel butterfly valve
- DN 200
- WAFER type with centering lugs
- Flange connection according to EN 1092-1 PN10/16/25/40 & ANSI 150/300
- Maximum operating pressure 40 bar
- Suitable for vacuum applications down to 0.01 bar absolute
- Body made of carbon steel 1.0625 (A216 WCB)
- Disc made of stainless steel 1.4027 (ASTM CA-40)
- Seat made of R-PTFE reinforced with 25% glass fiber
- Fluid operating temperature: -29°C to +200°C
- Manually operated by geared handwheel
- Flange spacing according to EN 558 series 20
- DN 200
- WAFER type with centering lugs
- Flange connection according to EN 1092-1 PN10/16/25/40 & ANSI 150/300
- Maximum operating pressure 40 bar
- Suitable for vacuum applications down to 0.01 bar absolute
- Body made of carbon steel 1.0625 (A216 WCB)
- Disc made of stainless steel 1.4027 (ASTM CA-40)
- Seat made of R-PTFE reinforced with 25% glass fiber
- Fluid operating temperature: -29°C to +200°C
- Manually operated by geared handwheel
- Flange spacing according to EN 558 series 20
| Body material | |
| Sealing | |
| Connection ends | |
| Connection diameter | |
| Nominal geometry | |
| Nominal pressure | |
| Fluid operating temperature | |
| Control | |
| Compatibility – Fluids |
|
| Intrastat code |
|
| Gross weight |
|
| Country |
|
| ECLASS code |
|
| UNSPSC code |
|
