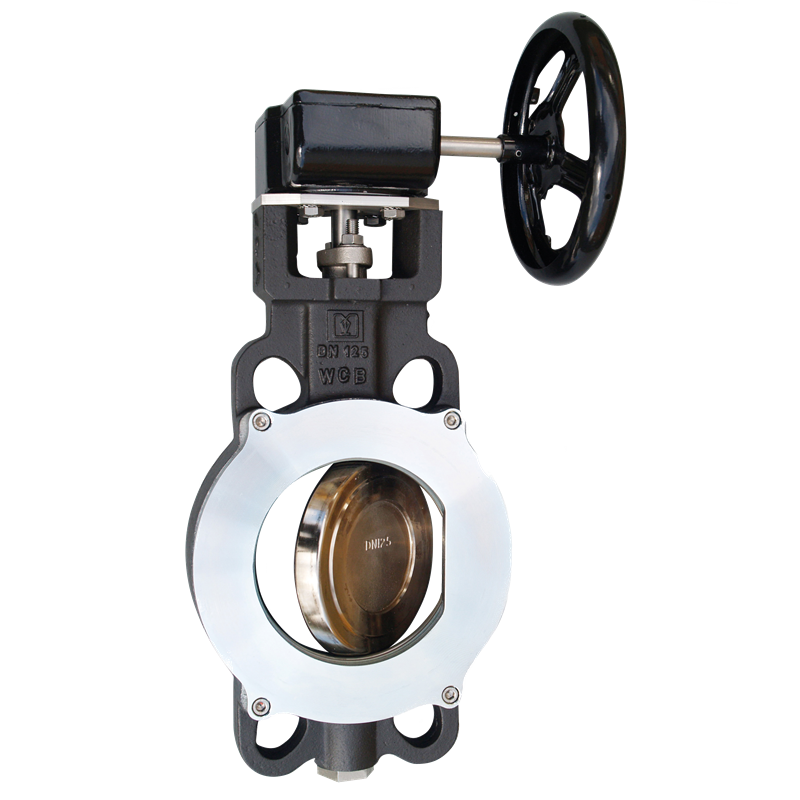

Double offset butterfly valve - Carb Steel body - R-PTFE - Stain.Steel butterfly - WAFER DN100/PN50
Reference :
BUWM.012.100
Brand reference :
2E-5590B 100 LEVER
| Body material | |
| Sealing | |
| Connection diameter | |
| Nominal geometry | |
| Nominal pressure | |
| Fluid operating temperature |
High-performance double-offset butterfly valve in carbon steel
- DN 100
- WAFER type with centering lugs
- Connection between flanges according to EN 1092-1 PN10/16/25/40 & ANSI 150/300
- Maximum service pressure: 50 bar
- Suitable for vacuum service down to 0.01 bar abs.
- Body in carbon steel 1.0625 (A216 WCB)
- Disc in stainless steel 1.4409 (A351 CF3M)
- Seat in R-PTFE reinforced with 25% glass fiber
- Fluid service temperature: -29°C to +200°C
- Manual operation by carbon steel lever
- Face-to-face dimension according to EN 558 series 20
- DN 100
- WAFER type with centering lugs
- Connection between flanges according to EN 1092-1 PN10/16/25/40 & ANSI 150/300
- Maximum service pressure: 50 bar
- Suitable for vacuum service down to 0.01 bar abs.
- Body in carbon steel 1.0625 (A216 WCB)
- Disc in stainless steel 1.4409 (A351 CF3M)
- Seat in R-PTFE reinforced with 25% glass fiber
- Fluid service temperature: -29°C to +200°C
- Manual operation by carbon steel lever
- Face-to-face dimension according to EN 558 series 20
| Body material | |
| Sealing | |
| Connection ends | |
| Connection diameter | |
| Nominal geometry | |
| Nominal pressure | |
| Fluid operating temperature | |
| Control | |
| Compatibility – Fluids |
|
| Intrastat code |
|
| Gross weight |
|
| Country |
|
| ECLASS code |
|
| UNSPSC code |
|
