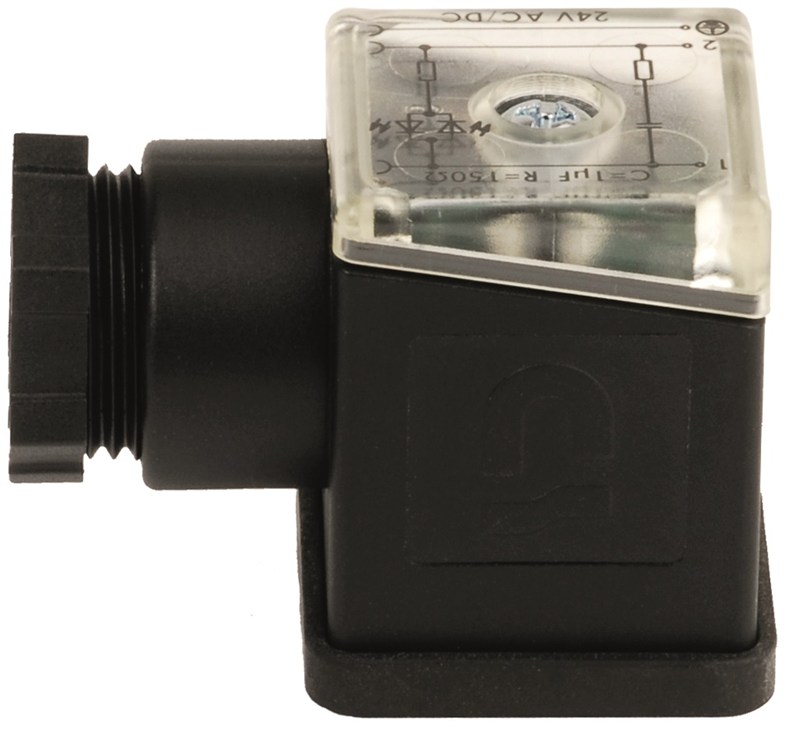

CONNECTOR LED 24V
Reference :
88122603
Brand reference :
| Ambient Temp | |
| Body material | |
| Sealing | |
| Specifications | |
| Voltage |
Plug-in connector with integrated display and electrical protection
- Size 30
- Compliance: ISO 4400 / EN 175301-803, form A
- Distance between contacts 18mm
- Number of pins: 2 + earth
- IP65 electrical protection (EN 60529)
- Housing in glass-fibre reinforced polyamide with NBR seal
- 1.5mm² conductor cross-section
- Voltage 24V DC - 24V 50Hz
- Operating temperature range -40°C to +80°C
- Cable gland for Ø6 to 10mm cable
- With RC, RC circuit absorbing the coil choke
- With LED, light-emitting diode, to indicate presence of voltage at coil terminals
- Size 30
- Compliance: ISO 4400 / EN 175301-803, form A
- Distance between contacts 18mm
- Number of pins: 2 + earth
- IP65 electrical protection (EN 60529)
- Housing in glass-fibre reinforced polyamide with NBR seal
- 1.5mm² conductor cross-section
- Voltage 24V DC - 24V 50Hz
- Operating temperature range -40°C to +80°C
- Cable gland for Ø6 to 10mm cable
- With RC, RC circuit absorbing the coil choke
- With LED, light-emitting diode, to indicate presence of voltage at coil terminals
| Ambient Temp | |
| Body material | |
| Compatibility - fluids |
|
| Country of origin |
|
| Customs duty number |
|
| Eclass |
|
| Gross weight (kg) |
|
| Sealing | |
| Specifications | |
| UNSPSC Code |
|
| Voltage |
Associated products
See all products
Stock : 0
€17.75
