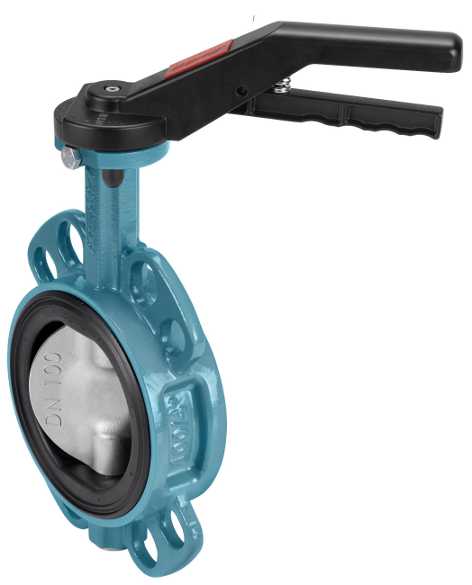

Butterfly valve WAFER - GGG40/EPDM/CF8M - DN150 - GN6/10/16 ANSI 150 - PN16 - notched lever
Reference :
BUWM.001.150
Brand reference :
88661913
| Body material | |
| Diameter of connection | |
| Fluid working Temp | |
| Operated | |
| Sealing | |
| Type of connection |
Manual Butterfly Valve – GEMÜ Series R487
- DN 150
- WAFER type with centering lugs
- Connection: to be installed between PN10/16 and ASME B16.5 Class 150 flanges
- Maximum operating pressure: 16 bar
- Body: ductile iron EN-GJS-400-15 (GGG40), epoxy-coated 250 µm (RAL 5021)
- Disc: stainless steel CF8M, 1.4408
- Shaft: stainless steel AISI 420, 1.4021
- Replaceable liner in EPDM
- Fluid temperature range: -10°C to +120°C
- Ambient temperature range: -10°C to +70°C
- Operation: notched lever
- Face-to-face dimensions according to ISO 5752/20, EN 558-1/20, API 609 Category A
- Leak test according to EN 12266-1/P12, leakage rate A
- Former reference: 487150W332A1EL0AHL17
- DN 150
- WAFER type with centering lugs
- Connection: to be installed between PN10/16 and ASME B16.5 Class 150 flanges
- Maximum operating pressure: 16 bar
- Body: ductile iron EN-GJS-400-15 (GGG40), epoxy-coated 250 µm (RAL 5021)
- Disc: stainless steel CF8M, 1.4408
- Shaft: stainless steel AISI 420, 1.4021
- Replaceable liner in EPDM
- Fluid temperature range: -10°C to +120°C
- Ambient temperature range: -10°C to +70°C
- Operation: notched lever
- Face-to-face dimensions according to ISO 5752/20, EN 558-1/20, API 609 Category A
- Leak test according to EN 12266-1/P12, leakage rate A
- Former reference: 487150W332A1EL0AHL17
| Body material | |
| Compatibility - fluids |
|
| Customs duty number |
|
| Diameter of connection | |
| Eclass |
|
| Fluid working Temp | |
| Gross weight (kg) |
|
| Operated | |
| Sealing | |
| Type of connection | |
| UNSPSC Code |
|
