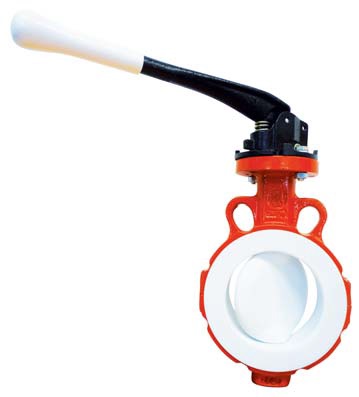

Butterfly valve - GGG40/PTFE/PTFE - DN80 - WAFER GN6/10/16 ANSI 150 - PN10 - Hand lever - 200°C

Manually operated butterfly valve for aggressive fluids
- DN 80
- WAFER type with centering lugs
- Connection: to be placed between flanges PN10/16 and ASME B16.5 class 150
- Maximum operating pressure 10 bar
- Two-piece body in ductile iron EN-GJS-400-18 (GGG40) epoxy coated 80 µm (RAL 2002)
- Butterfly with shaft in stainless steel 1.4469 PTFE coated
- PTFE liner
- Fluid temperature range from -40°C to +200°C
- Control by notched lever
- Dimensions according to ISO 5752/20, EN 558-1/20, API 609 category A
- Leakage test according to EN 12266-1/P12 leakage rate A
- ISO 5211 plate allowing the direct mounting of actuators
