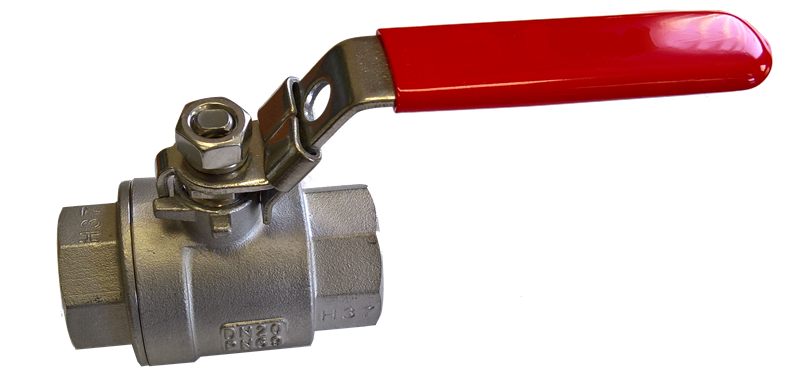

Ball valve - 316 Stainless Steel body - PTFE - G2'' FF - PN64 - 2/2 - 2 parts - 180°C
Reference :
BATM.018.002
Brand reference :
| Specifications | |
| Body material | |
| Sealing | |
| Connection diameter | |
| Nominal pressure | |
| Fluid operating temperature |
Two-piece stainless steel ball valve body
- G 2" threaded connection
- Full bore Ø 50mm
- Nominal pressure 64 bar
- 316 stainless steel body
- PTFE seats filled with 15% glass
- Fluid temperature range: -30°C to +180°C
- Manual operation via lockable stainless steel lever in open or closed position
- G 2" threaded connection
- Full bore Ø 50mm
- Nominal pressure 64 bar
- 316 stainless steel body
- PTFE seats filled with 15% glass
- Fluid temperature range: -30°C to +180°C
- Manual operation via lockable stainless steel lever in open or closed position
| Specifications | |
| Body material | |
| Sealing | |
| Connection ends | |
| Connection diameter | |
| Nominal pressure | |
| Fluid operating temperature | |
| Control | |
| Compatibility – Fluids |
|
| Intrastat code |
|
| Gross weight |
|
| Country |
|
| ECLASS code |
|
| UNSPSC code |
|
