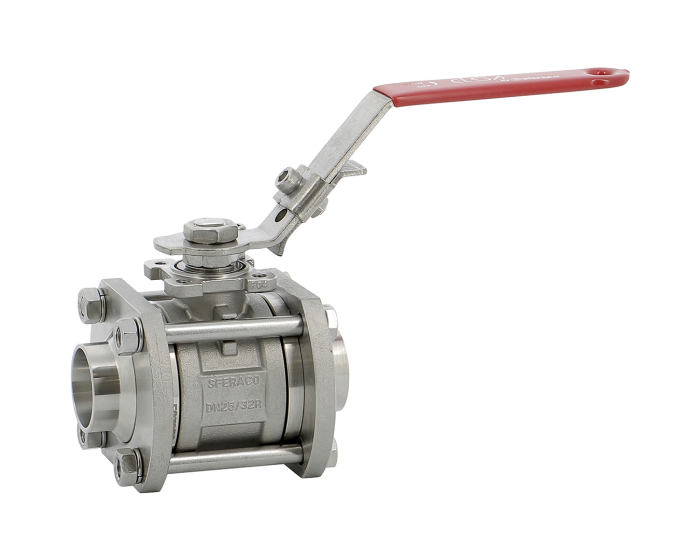

Ball valve 3 pieces Serie ELSA - DN100 - Butt Welding
Reference :
BABM.004.004
Brand reference :
| Specifications | |
| Application | |
| Body material | |
| Sealing | |
| Connection diameter | |
| Nominal pressure | |
| Fluid operating temperature |
ELSA series 3-piece ball valve
- DN100
- Butt Weld connexion regarding ISO pipe Ø114.3 mm - e : 3.2
- 316L stainless steel body
- CF3M stainless steel sphere
- Headquarters: TFM1600
- Operating temperature: - 50°C to 210°C
- Max working pressure: 63 bar
- Motorized by installation plan ISO 5211
- Ineligible axis
- Full passage
- Kvs (m³/h): 1768
- Valve compliant with EC 1935/2004: FDA
- DN100
- Butt Weld connexion regarding ISO pipe Ø114.3 mm - e : 3.2
- 316L stainless steel body
- CF3M stainless steel sphere
- Headquarters: TFM1600
- Operating temperature: - 50°C to 210°C
- Max working pressure: 63 bar
- Motorized by installation plan ISO 5211
- Ineligible axis
- Full passage
- Kvs (m³/h): 1768
- Valve compliant with EC 1935/2004: FDA
| Specifications | |
| Application | |
| Body material | |
| Sealing | |
| Connection ends | |
| Connection diameter | |
| Nominal pressure | |
| Fluid operating temperature | |
| Control | |
| Intrastat code |
|
| Gross weight |
|
| Country |
|
| ECLASS code |
|
| UNSPSC code |
|
