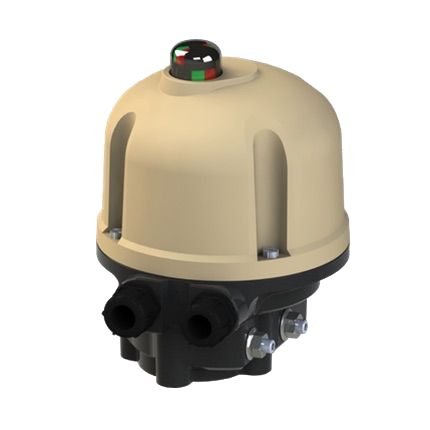

1/4 turn servomotor BERNARD CONTROLS - Serie AQ7L - 70 Nm - 85V CA à 260V CA + 24V CC
Reference :
AQ007LFH015PA000E0M
Brand reference :
| Adapter plate | |
| Body material | |
| Fluid working Temp | |
| Operated | |
| Operating torque, pressure opening at 6 bar | |
| Output star | |
| Sealing | |
| Voltage |
BERNARD CONTROLS waterproof quarter-turn actuator
- AQ range, model AQ7L
- Maximum torque 70 Nm
- Pre-wired SWITCH version, on/off Class A
- Operating time for 90° : 15 seconds
- Flange connection ISO 5211: F05/F07
- Double square drive star 22mm x 22mm
- Supplied with three square output adaptors 17mm x 17mm, 14mm x 14mm and 11mm x 11mm
- Supply voltages: 85V AC to 260V AC single phase and 24V DC
- Electrical power: 0.02 kW
- Rated current 0.4A
- Starting current: 1 A
- Emergency manual override via 10mm square (!!!! Do not apply torque greater than 6 Nm to the square!!!)
- Cast aluminium enclosure
- IP68 (2m/24h) / NEMA 4X protection rating
- Operating ambient temperature range -20 to +60°C
- Cable entry 2x M20
- 2 SPDT contacts (Open and Closed) + 2 potential free auxiliary contacts 250V AC-5A / 48V DC-2.5A (resistive load)
- 3D mechanical position indicator
- AQ range, model AQ7L
- Maximum torque 70 Nm
- Pre-wired SWITCH version, on/off Class A
- Operating time for 90° : 15 seconds
- Flange connection ISO 5211: F05/F07
- Double square drive star 22mm x 22mm
- Supplied with three square output adaptors 17mm x 17mm, 14mm x 14mm and 11mm x 11mm
- Supply voltages: 85V AC to 260V AC single phase and 24V DC
- Electrical power: 0.02 kW
- Rated current 0.4A
- Starting current: 1 A
- Emergency manual override via 10mm square (!!!! Do not apply torque greater than 6 Nm to the square!!!)
- Cast aluminium enclosure
- IP68 (2m/24h) / NEMA 4X protection rating
- Operating ambient temperature range -20 to +60°C
- Cable entry 2x M20
- 2 SPDT contacts (Open and Closed) + 2 potential free auxiliary contacts 250V AC-5A / 48V DC-2.5A (resistive load)
- 3D mechanical position indicator
| Adapter plate | |
| Body material | |
| Country of origin |
|
| Customs duty number |
|
| Eclass |
|
| Fluid working Temp | |
| Gross weight (kg) |
|
| Operated | |
| Operating torque, pressure opening at 6 bar | |
| Output star | |
| Sealing | |
| UNSPSC Code |
|
| Voltage |
