Filter - GG25 Cast Iron - Graphite - DN65 - PN16 - GN10/16 - Hor./ver. assembly - 1100 µm - (+)80°C
Reference :
STFX.001.065
Brand reference :
| Body material | |
| Diameter of connection | |
| Filtration | |
| Fluid working Temp | |
| GN | |
| Operation | |
| PN | |
| Sealing | |
| Type of connection |

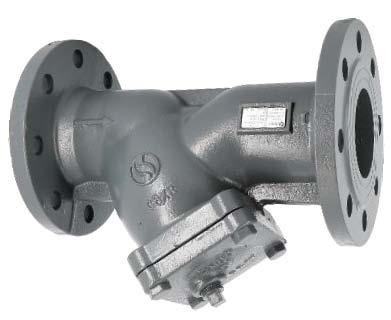

Flanged Y-Filter :
- DN 65
- Flanged connection according to EN 1092-2 PN16
- Filtration : 1500µm
- Maximum operating pressure 16 bar
- Body and cover made of cast iron EN GJS-500-7 (GGG40)
- Alkyd paint in grey RAL 7011, thickness 100 µm
- Removable 304 stainless steel strainer
- Graphite cover seal
- Operating temperature range from -10°C to +120°C
- With drain plug G 1/2"
- DN 65
- Flanged connection according to EN 1092-2 PN16
- Filtration : 1500µm
- Maximum operating pressure 16 bar
- Body and cover made of cast iron EN GJS-500-7 (GGG40)
- Alkyd paint in grey RAL 7011, thickness 100 µm
- Removable 304 stainless steel strainer
- Graphite cover seal
- Operating temperature range from -10°C to +120°C
- With drain plug G 1/2"
| Body material | |
| Compatibility - fluids |
|
| Country of origin |
|
| Customs duty number |
|
| Diameter of connection | |
| Eclass |
|
| Filtration | |
| Fluid working Temp | |
| GN | |
| Gross weight (kg) |
|
| Operation | |
| PN | |
| Sealing | |
| Type of connection | |
| UNSPSC Code |
|
